Description

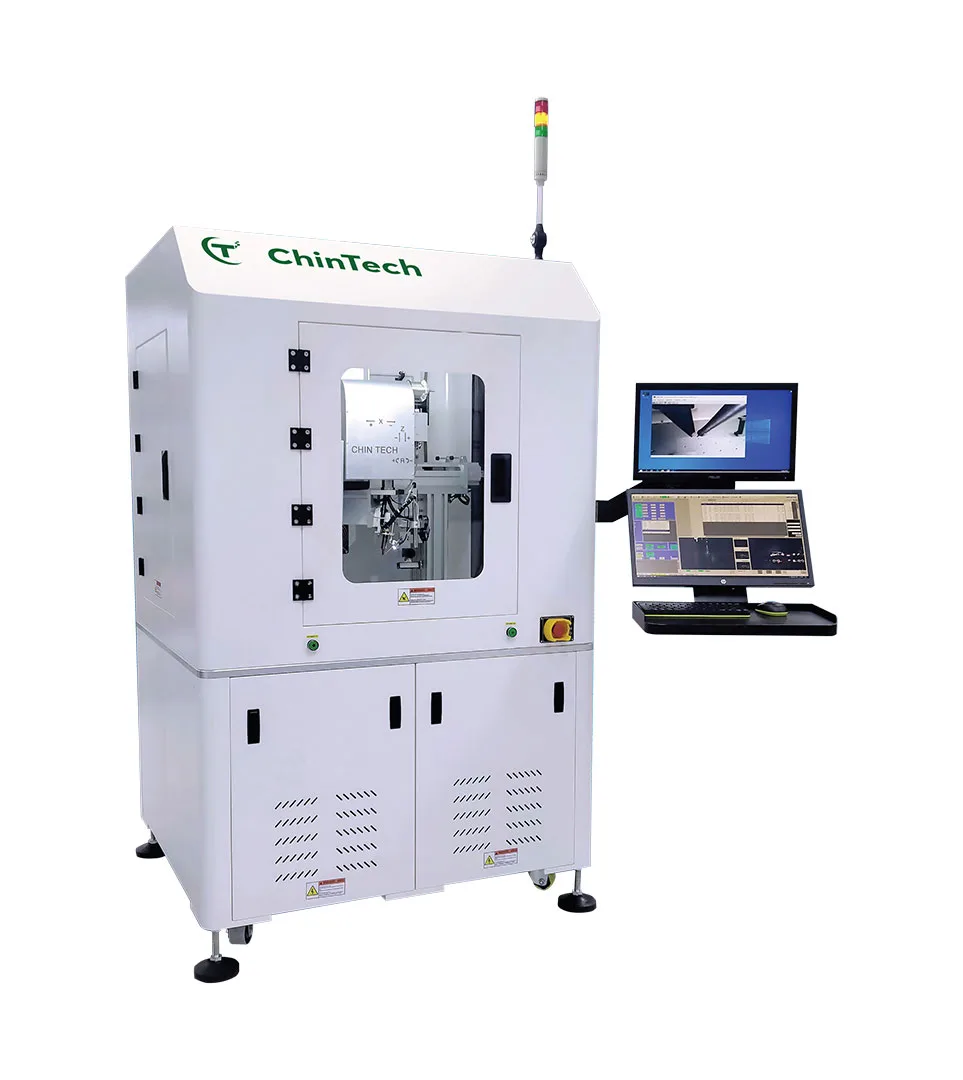

Chin Tech EX399
5-axis Robotic Soldering Machine
The EX399 robotic soldering machine from Chin Tech is designed to enhance precision, consistency, and productivity in electronics manufacturing. This advanced robotic soldering machine Malaysia automates soldering tasks, reducing human error and improving assembly efficiency for printed circuit boards (PCBs), components, and industrial electronics.
Key Features
- High-precision soldering with consistent temperature control
- Flexible programming for different PCB layouts and components
- Safety features including emergency stop and collision detection
- Fast, repeatable, and reliable operation for mass production
- Easy integration with existing production lines and automated workflows
This robotic soldering machine Malaysia is ideal for manufacturers looking to streamline operations and reduce labor-intensive processes.
Applications
- Electronics assembly factories
- Industrial automation and smart manufacturing
- PCB soldering for consumer electronics
- Automotive electronics assembly
- Any facility requiring high-precision, repeatable soldering
By using a robotic soldering machine, manufacturers can achieve faster production cycles, improved product quality, and a safer working environment.
Benefits
- Increased Efficiency: Automates repetitive soldering tasks for consistent output
- Precision & Quality: Ensures uniform solder joints with minimal defects
- Cost Savings: Reduces labor requirements and rework costs
- Scalability: Can handle small-batch and mass production projects
- Safety: Minimizes operator exposure to heat, fumes, and repetitive strain
Robotic soldering VS Others
| Feature | Manual Soldering | Generic Robotic Soldering | EX399 Robotic Soldering Machine |
| Speed | Slow | Moderate | High-speed, consistent |
| Accuracy | Operator-dependent | Moderate | ±0.1 mm precision |
| Labor | High | Medium | Minimal labor needed |
| Safety | High risk | Moderate | Advanced safety features |
WE DON’T SELL MACHINES
We sell BREAK-THRU SOLUTIONS
That saves you time and money

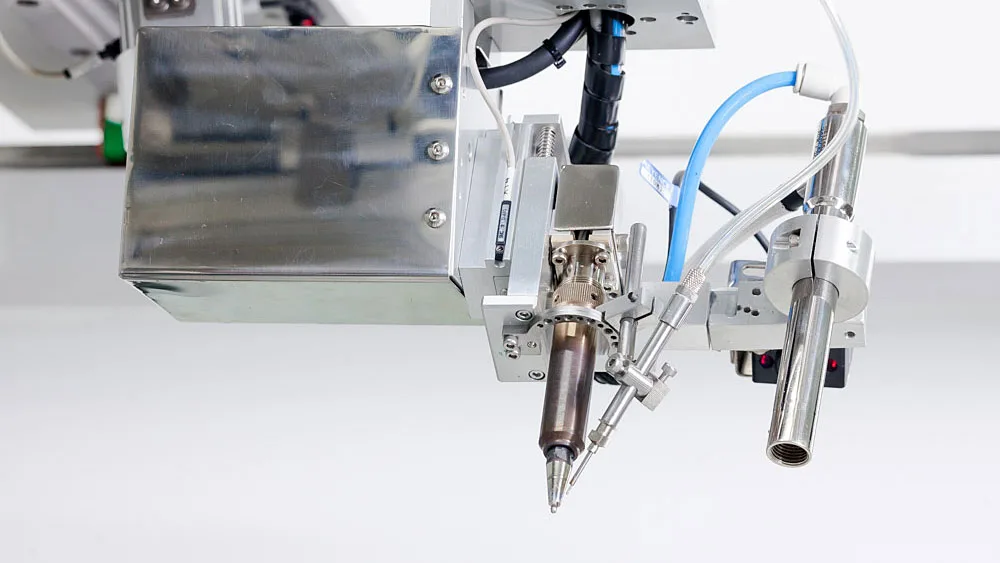

Convection & Conduction Combination
SOLUTION #1 : CCC
Our patented Convection and Conduction Combination ensures complete barrel fill even for PCB thicker than 2mm
Shadowed Component Soldering
SOLUTION #2: SCS
Shadowed Component Soldering is a problem to others but NOT FOR US with our patented 5-Axis On-the-fly theta soldering head unit, all components ARE solderable irrespective of heights

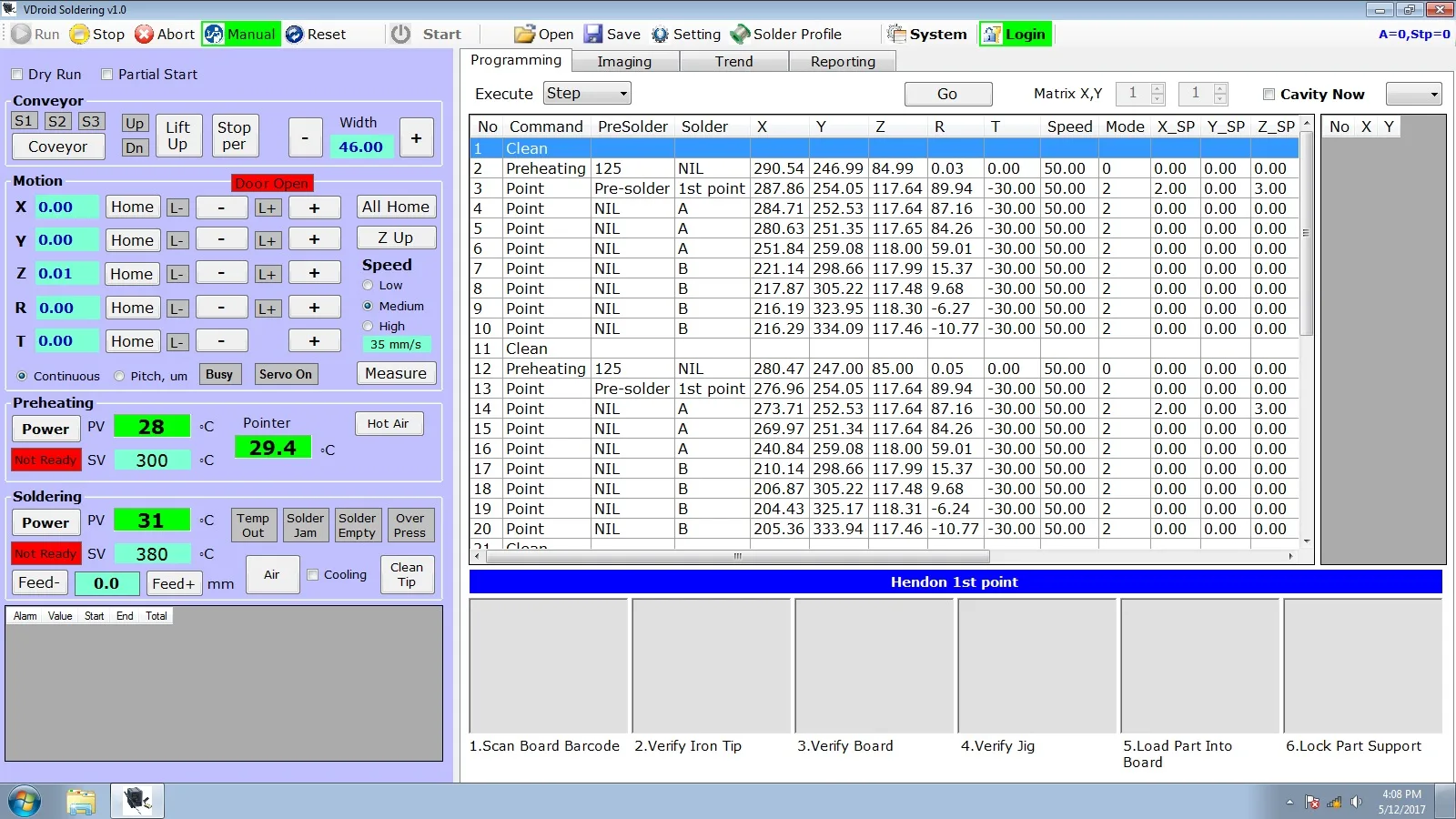

Offline Gerber Programming
SOLUTION #3: OGP
Offline Gerber Programming saves time and money comparing to the laborious teach pendant method. New programs are created in a jiffy. Suitable for ad-hoc NPI and R&D applications

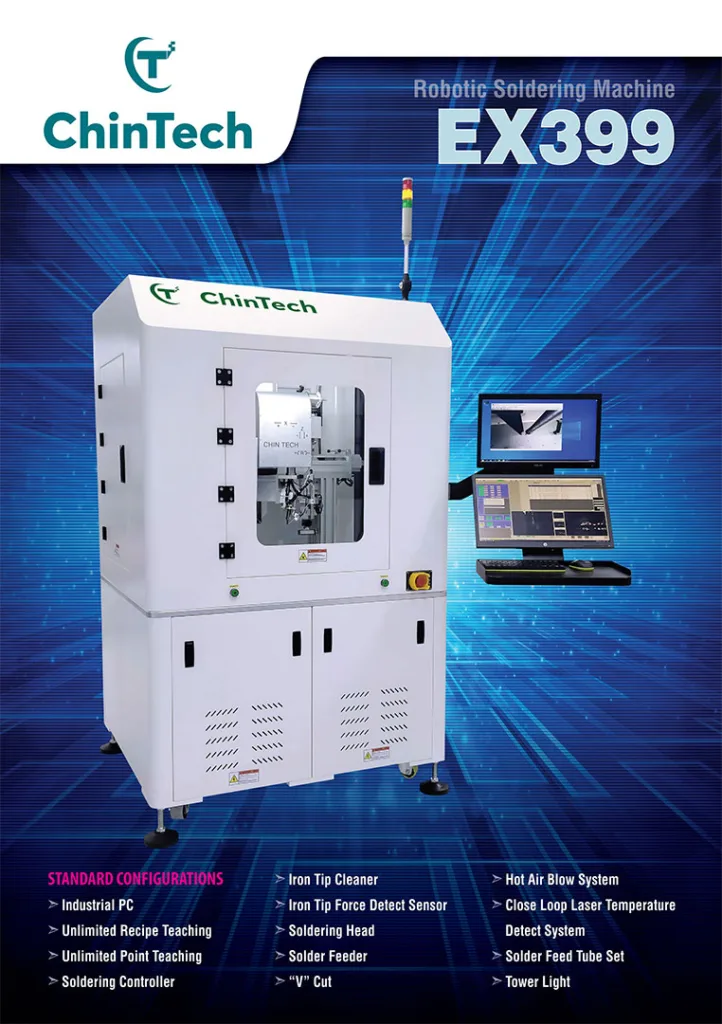

STANDARD CONFIGURATION
- Robot Body
- Industrial PC
- Unlimited Recipe Teaching
- Unlimited Point Teaching
- Soldering Controller
- Bar Code Scanner
- Iron Tip Cleaner
- Soldering Head
- Solder Feeder
- Solder Feed Tube Set
Product Gallery
Local Support in Malaysia
Chin Tech provides professional installation, programming, and maintenance for the EX399 robotic soldering machine across Malaysia. Our team ensures smooth operation and reliable performance, helping your facility maximize efficiency and ROI.
FAQs
What industries commonly use robotic soldering machines?
Robotic soldering machines are commonly used in electronics manufacturing, automotive electronics, industrial control systems, power supplies, and consumer electronics production.
How does a robotic soldering machine improve solder joint quality?
Robotic soldering machines control temperature, contact time, and movement accurately, ensuring consistent solder joints and minimizing common issues like cold joints, bridging, and uneven wetting.
What types of products can be soldered using the Chin Tech EX399 robotic soldering machine?
The EX399 robotic soldering machine is suitable for PCBs, connectors, terminals, power components, and electronic assemblies requiring consistent, repeatable soldering accuracy.
How accurate is the EX399 robotic soldering machine?
The EX399 robotic soldering machine offers high repeatability with precise motion control, enabling accurate soldering even on compact or complex electronic assemblies.
What maintenance is required for a robotic soldering machine?
A robotic soldering machine requires regular tip cleaning and replacement, solder wire checks, calibration of motion accuracy, software updates, and periodic inspection of heaters, feeders, and safety systems to ensure stable performance and consistent solder quality.
